Structural rectangular unit with glass glazing.
Circular domed skylight with solar bronze triple glazing.
Structural pyramid units with solar bronze plastic glazing..
Ridge-Lite unit with verticle gable ends and solar bronze plastic glazing.
Structural Pyramid unit with bronze glazing. Interior finish and lighting shown.
Insulated Thermally-Broken Raised Self Curb Skylight.
60-foot long barrel-vault unit with vertical gable ends and solar bronze glazing.
Canopy unit with custom green glazing above doorway.
Pyramid units with clear colorless double glazing.
Domed unit with white translucent glazing and optional protection bars.
Barrel-vault unit with vertical gable ends, white translucent double glazing, and optional air ventilation.
Nine Domed units with solar bronze double glazing.
Sloped unit with glass glazing.
Circular domed skylight with solar bronze triple glazing.
Structural glass enclosure.
Domed units with solar bronze double glazing.
Domed units with solar bronze double glazing.
Barrel-vault unit with vertical gable ends and white translucent double glazing.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
(847) 854-2900

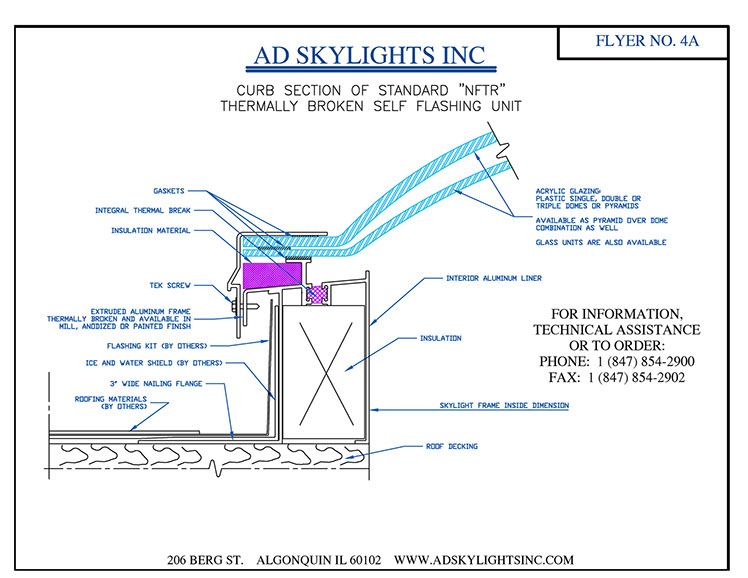

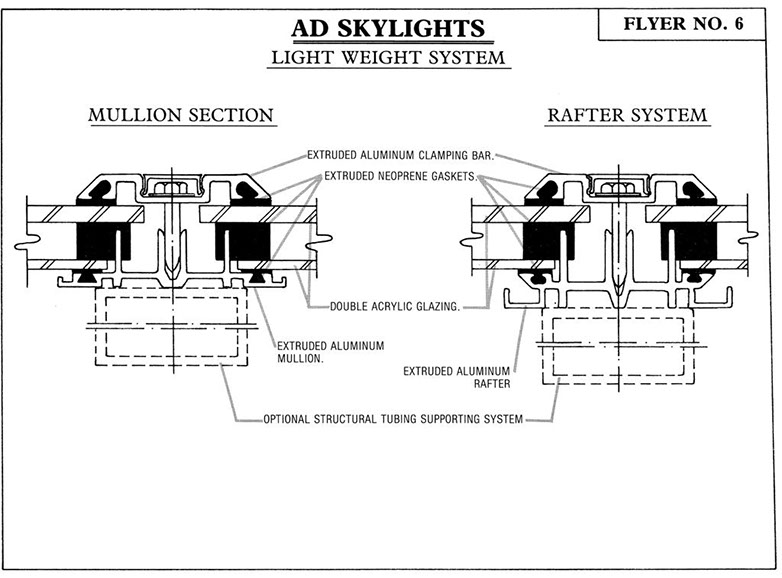

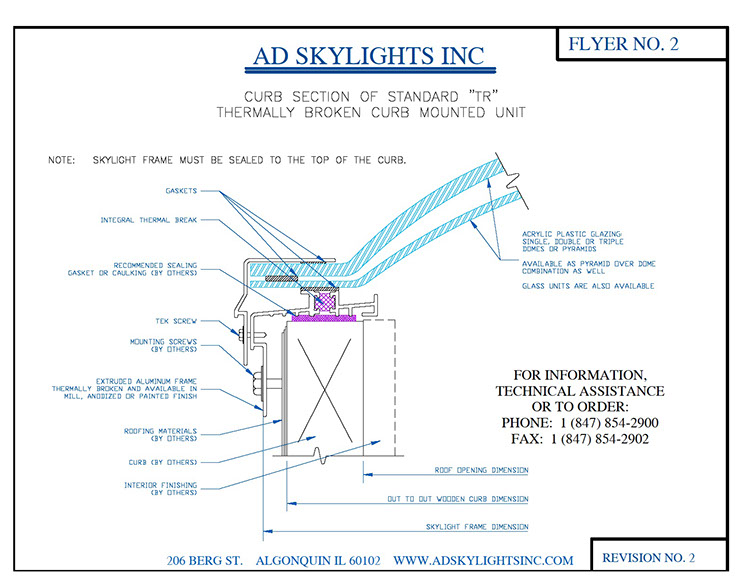

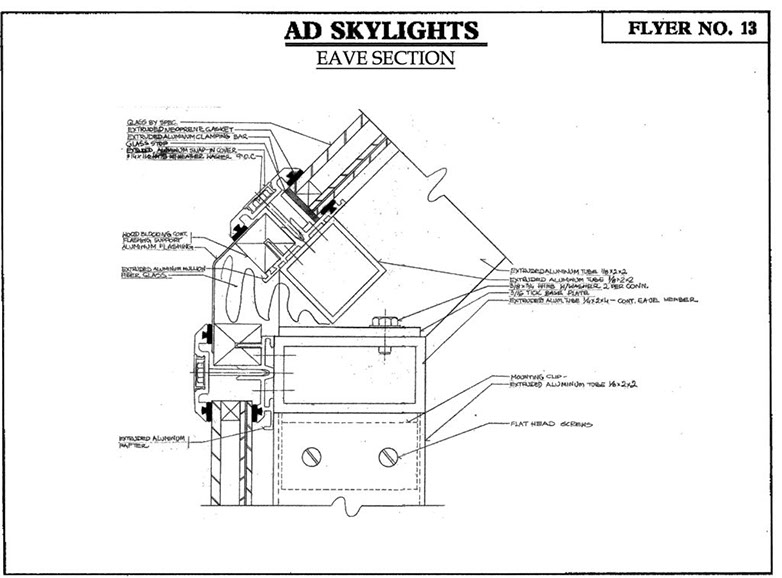

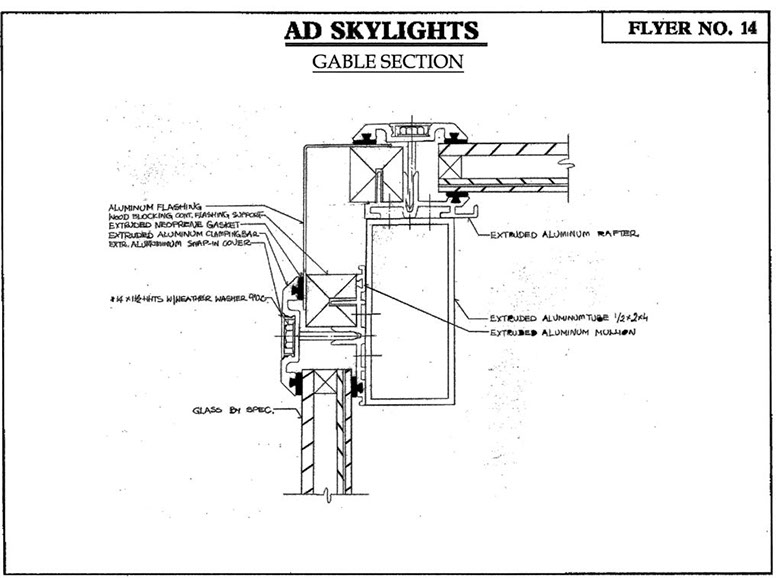

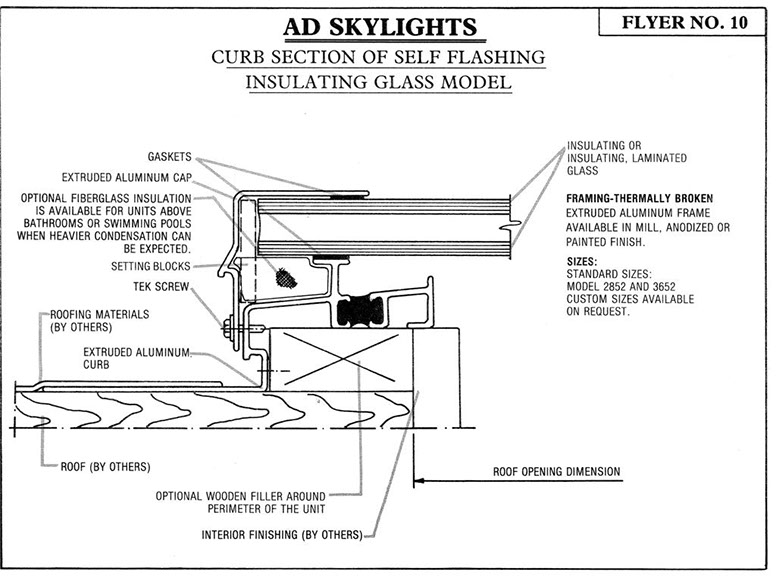

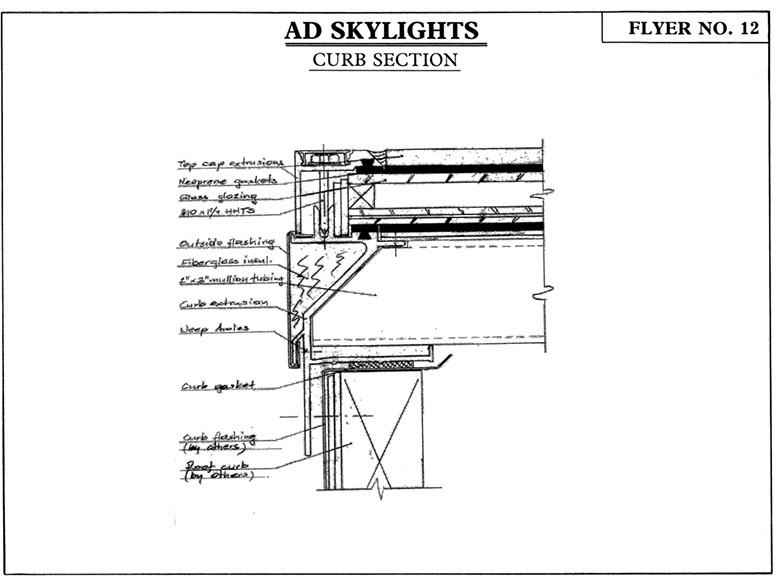

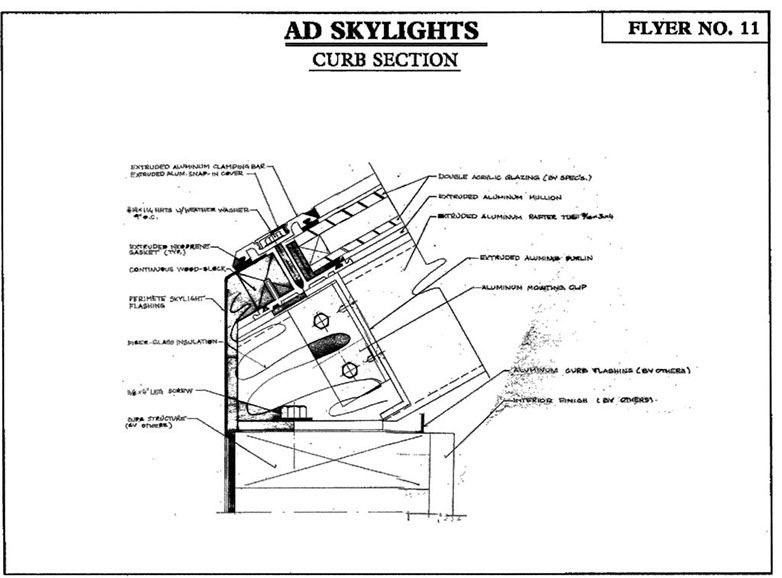

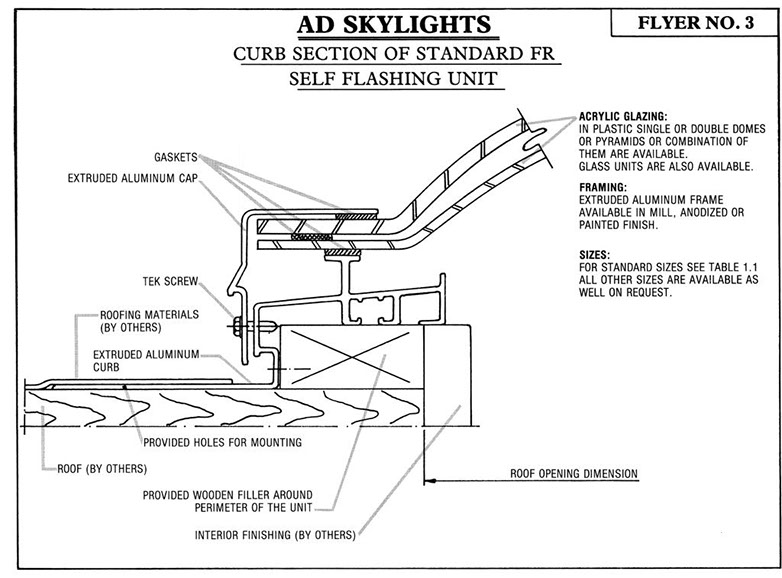

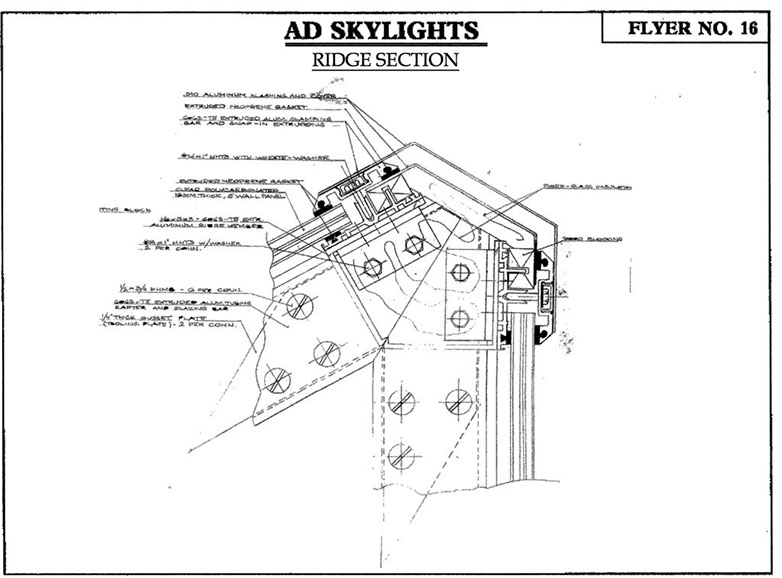

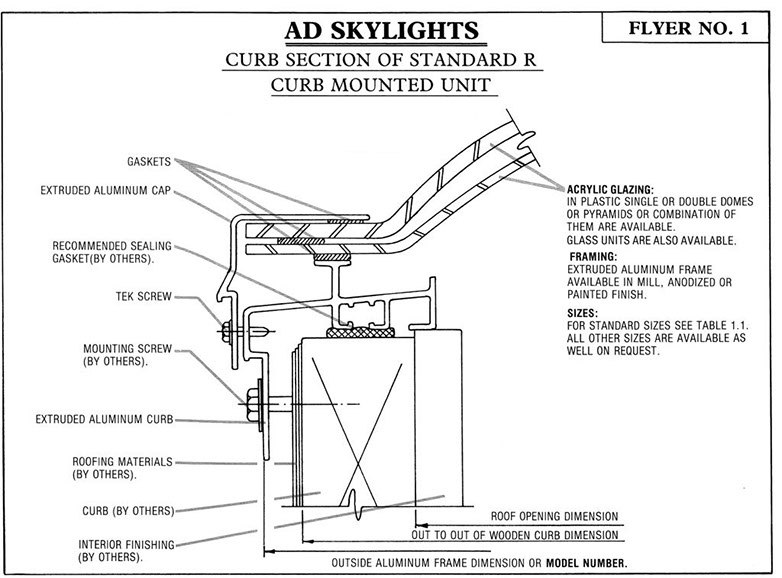

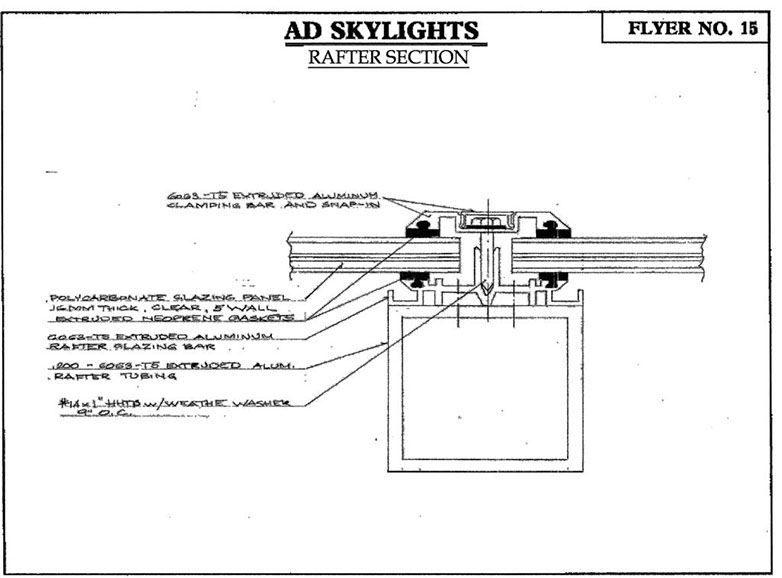

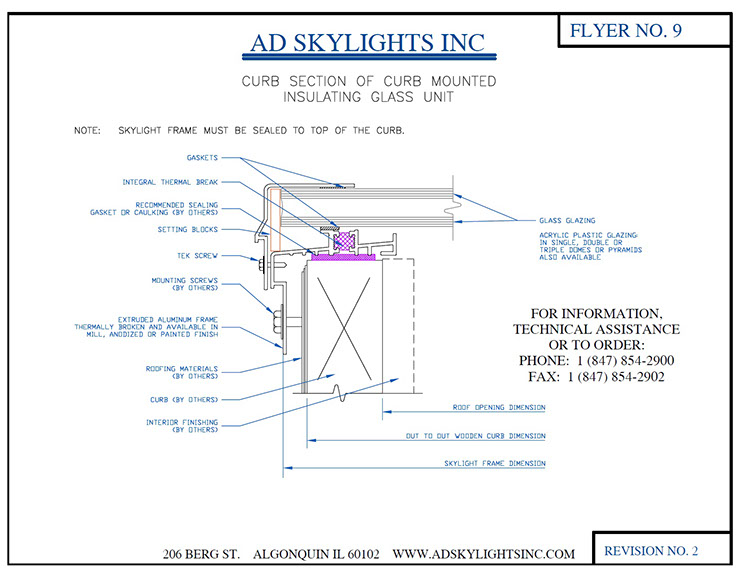

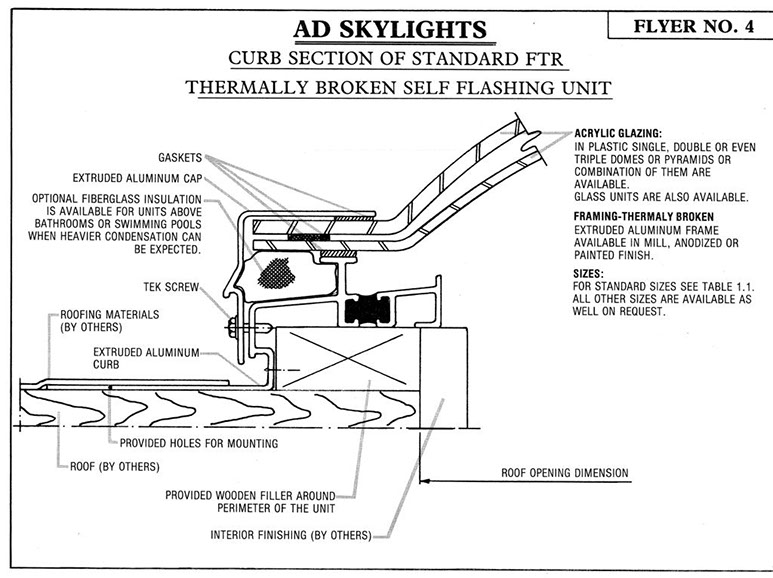

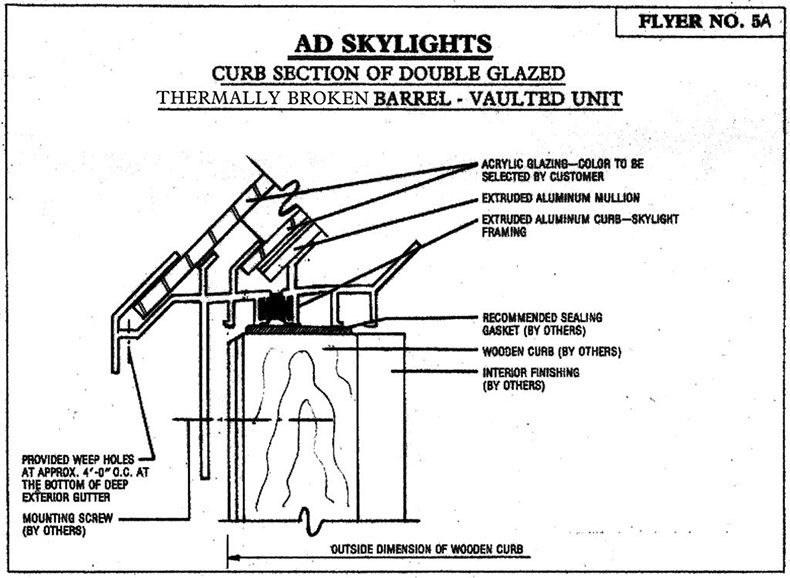

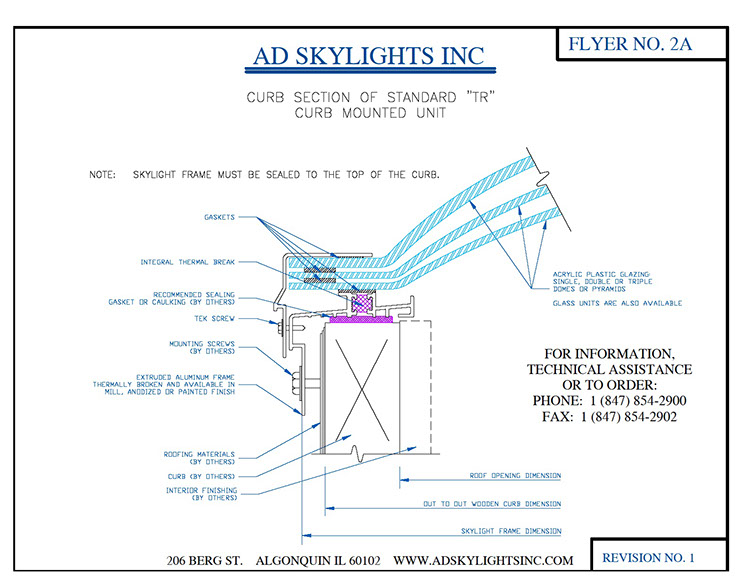

SECTIONAL DRAWINGS
We have included our full set of our sectional drawings for your convenience. Select any of the below to view each drawing.
